«This tracker is so small that we can use it on the smallest devices, tools and packaging.»

Markus Weber, manager logistics Egerkingen

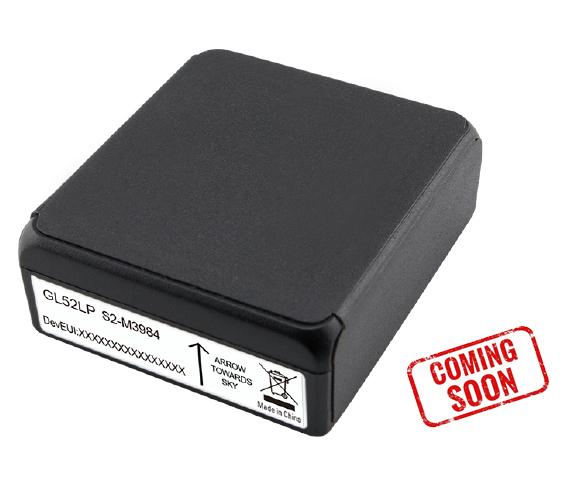

LPN Tracker Micro

The LoRaWAN-based LPN Tracker Micro is only 4 centimeters small and can therefore be used very flexibly. The device also fits in tool boxes and other containers.

The LPN Tracker Micro serves well as a anti-theft device. Geofencinc and the motion based transmission can trigger an alarm when moved.

  • position recording up to 6x per day
  • Very small at 4.6 x 4.1 x 1.7 cm
  • Up to three years of battery life, depending on configuration
  • Transmission of the data via the Swisscom LoRaWan network
  • Allocation and anti-theft protection with geofencing
ask for a quote
IP67 waterproof box
IP67 waterproof box

LPN gateways

The LPN gateways extend LPN coverage inside buildings like production halls, warehouses or even outdoors. The gateways are equipped with a 4G module including SIM card and data subscription. If 4G reception is not possible, the devices can also be connected to the Internet via Ethernet cable.

LPN Indoor Gateway

  • SIM card and data subscription
  • GPS antenna internal
  • RJ45 interface
  • Mounting bracket
  • 230V adapter and cable
  • LPN Indoor Gateway
    LPN Indoor Gateway

    LPN Outdoor Gateway

  • SIM card and data subscription
  • GPS antenna internal
  • IP-67 protected
  • 208x146x80 mm
  • 1160 g
  • Mounting bracket
  • Ethernet cable/-48 DC PoE - RJ45
  • LoRa antenna
  • Power cable and PoE adapter
  • LPN Outdoor Gateway
    LPN Outdoor Gateway

    Tracker Dashboard

    • Individual master account for device and user management
    • Online map with route, position display and event reporting
    • Geofencing and POI (Point of Interest)
    • SMS contingent recharge by credit card or prepayment

    Geofencing

    Define geographic areas on the map in the dashboard

    • Be informed by e-mail and SMS when entering and leaving
    • Use this function as an anti-theft function for vehicles, objects and valuable cargo
    • Have events created with which you can control alarm systems
    • Use the events for your reporting and other applications

    Administration and reports

    • Manage users, devices, groups and permissions
    • Zuteilung Geräte zu Benutzern und Gruppen
    • Define actions to be performed based on geo-fencing, battery level, etc.
    • Use the standard reports around for your evaluation
    • Connect your dashboard data via the API to your own systems
    Dashboard
    Dashboard
    Dashboard
    Functions of the LPN Tracker Micro
    • Recording and transmission of the current GPS position data
    • Very small at 4.1 x 4.8 x 1.9 cm
    • Up to three years of battery life with one position per day
    • Transmission of the data via the Swisscom LoRa network, which is available throughout Switzerland
    • Construction site assignment and theft protection with geofencing
    • Waterproof plastic box optional
    Tracker IoT - das Internet der Dinge
    Size
    46.8 x 41.8 x 16.9 mm
    Weight
    45 g
    LoRaWAN
    863-870 MHz
    GPS sensibility
    Autonomous: -147 dBm
    GPS precision
    ~ 10 m
    Motion detection
    3-Axis motion sensor
    Energy supply
    Li-Mn 2400mAh
    Battery life
    up to 3 years depending on configuration
    Operating temperature
    -20°C to +60 °C
    Communication to the internet server
    via LoRaWAN
    Antenna
    integriated
    Certificates
    CE, LoRaWAN-Certified, Swisscom IOT Qualified
    Origin
    China
