«The Asset Tracker Mini GL50M is small, robust and waterproof. We can use it to locate and monitor a large number of machines and tools»

Franco Moretti, Site ManagerSt. Gallen

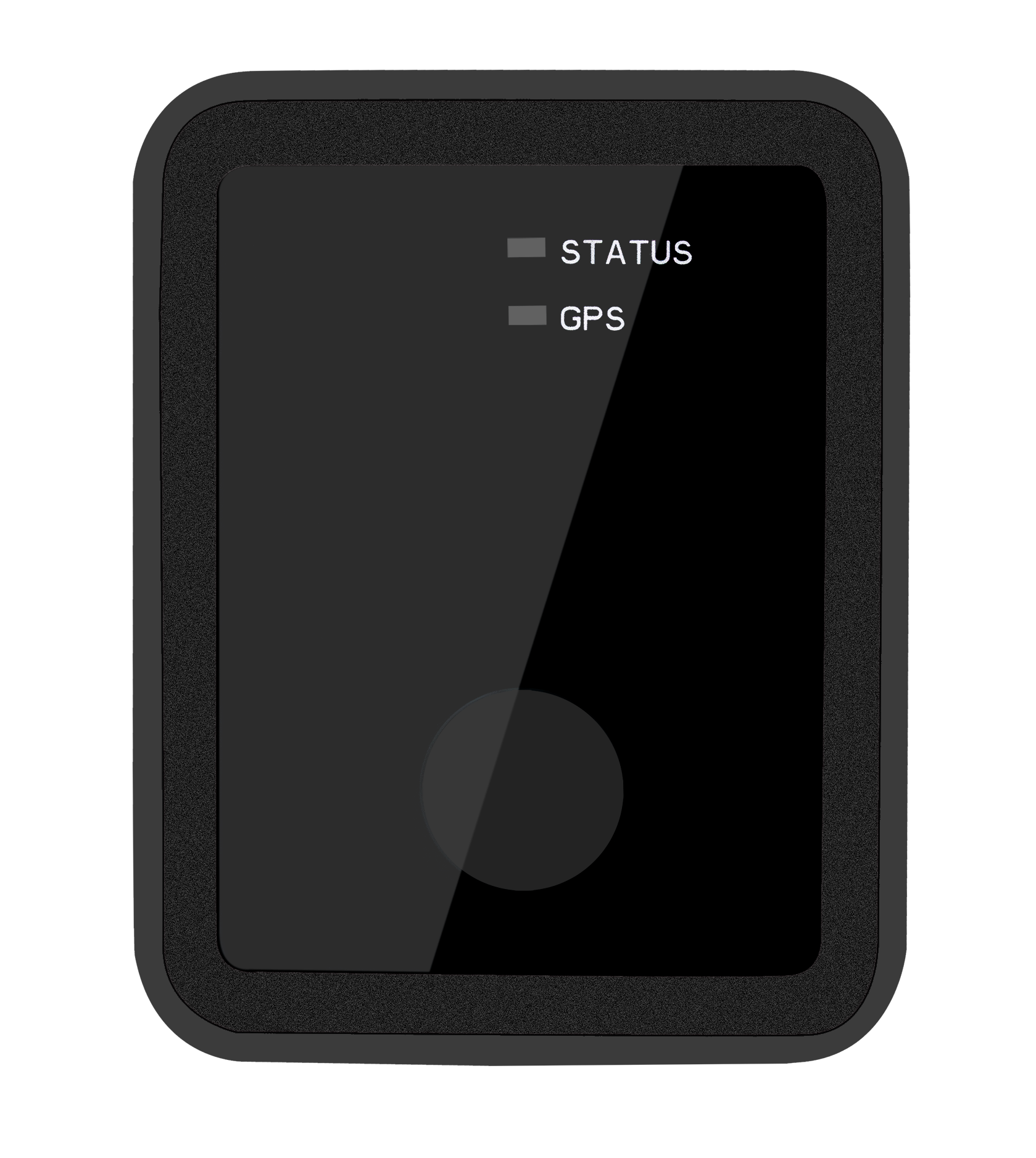

Asset Tracker Mini GL50M

The Asset Tracker Mini GL50M is designed for use on even the smallest machines and tools. When monitoring with a daily position, one battery charge lasts for up to three years. The device is waterproof and robust and has a button to trigger an action.

  • Flexible, robust, durable and small
  • Extremely robust and waterproof according to IP67 with a battery life of several years
  • Data recording and transmission based on movement or selectable time interval
  • Small, light and compact
    64.6 × 51 × 20.9 mm and 75 grams.
  • Integrated motion sensor
  • Programmable key (action or inactive)
  • Theft protection with motion sensor or geofencing
order now

Tracker Dashboard

  • Individual master account for device and user management
  • Online map with route, position display and event reporting
  • Geofencing and POI (Point of Interest)
  • SMS contingent recharge by credit card or prepayment

Geofencing

Define geographic areas on the map in the dashboard

  • Be informed by e-mail and SMS when entering and leaving
  • Use this function as an anti-theft function for vehicles, objects and valuable cargo
  • Have events created with which you can control alarm systems
  • Use the events for your reporting and other applications

Administration and reports

  • Manage users, devices, groups and permissions
  • Zuteilung Geräte zu Benutzern und Gruppen
  • Define actions to be performed based on geo-fencing, battery level, etc.
  • Use the standard reports around for your evaluation
  • Connect your dashboard data via the API to your own systems
Dashboard
Dashboard
Dashboard
Functions of the Asset Tracker Mini GL50M (4G)
  • Integrated SIM card for data transmission
  • 4G module integrated
  • Waterproof as per IP67
  • Exchangeable batteries
  • Geofencing and event handling
  • GPS accuracy < 2.5 meters
  • Programmable button function (SOS / action or inactive)
  • Data transmission mode can be selected (for movement or time interval daily 1x / 2x / 4x / 6x / 12x or hourly)

On-time cost

Asset Tracker Mini GL50M Special Price! CHF 107.70
Setup and activation, Asset Tracker Mini GL50M   no cost!

Monathly cost

Subscription Asset Tracker Mini GL50M 3 months at no charge! CHF 10.65

Use abroad (additional, monthly costs)

Roaming ZoneA CHF 10.75
Roaming ZoneB CHF 16.15
Roaming ZoneC on request
All prices incl. 7.7 % VAT
Mobile Network/
Operating Band
LTE: Cat M1/Cat NB1
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25*/B28
LTE-TDD: B39 (for Cat.M1only)
GSM: GPRS8950/900/1800/1900 MHz
GPS Sensitivity
cold start -145 dBm, tracking: -162 dBm
BLE
BLE Support optional
TIFF (first Fix)
cold start: ~31 "
hot start: 1 "
LED Indicators
CEL ,GNSS, PWR
Weight
75 g
with Magnet-Mount-Set 160 g
Dimenstions
64.6 × 51 × 20.9 mm
Powersupply
Lithium manganese dioxide battery, 2400mAh
Batterylife
~1800 days with one message per day
~600 days with two messages per day
~365 days with one message per day
Operating Temperature
-20 ° bis +60 °C
Mounting Options
Mounting bracket
GPS Accuracy
< 2.5 m
A GPS
online/offline Support
Transmission Protocol
TCP, UDP, SMS
Memory
internal up to 1000 Events
Antenna
internal LTE/GNSS
Motion Sensor
3-axis
Approvals
CE, e1 & FCC Certificate
Origin
China
