Free testing



"The GPS Locator is as small as a
matchbox and fits in anywhere.
In case of an emergency,
I'll press the button and an alert by e-mail and SMS will be sent."

Evi Buholzer in Pontresina

GPS Locator GL320M (4G)

The GL320M is as small as a matchbox, extremely robust, splash-proof. This mobile GPS tracker is therefore ideal for many applications. The SOS button can be freely programmed so that an e-mail and an SMS with the GPS position are triggered when pressed.

  • As small as a matchbox
  • SOS button programmable for sending SMS and e-mail
  • Battery life up to a week
  • Position, time and altitude information in realtime or every few minutes
  • Including SIM card, reports, geofencings, event handling and much more
order now

Devices for rent for events

rental period from 4 weeks

send request

Tracker Dashboard

  • Individual master account for device and user management
  • Online map with route, position display and event reporting
  • Geofencing and POI (Point of Interest)
  • SMS contingent recharge by credit card or prepayment

Geofencing

Define geographic areas on the map in the dashboard

  • Be informed by e-mail and SMS when entering and leaving
  • Use this function as an anti-theft function for vehicles, objects and valuable cargo
  • Have events created with which you can control alarm systems
  • Use the events for your reporting and other applications

Administration and reports

  • Manage users, devices, groups and permissions
  • Zuteilung Geräte zu Benutzern und Gruppen
  • Define actions to be performed based on geo-fencing, battery level, etc.
  • Use the standard reports around for your evaluation
  • Connect your dashboard data via the API to your own systems
Dashboard
Dashboard
Dashboard
The functions of the GPS Locator GL320M (4G)
  • SIM-card included
  • 4G modiule integrated
  • Alerting by SMS or email, area-controlled or emergency button
  • On / off button can be deactivated
  • Actual location in realtime
  • Transmission of data in realtime
  • Configuration for pedestrians or cars can be selected (optimization of battery consumption)
  • Recording distances traveled
  • GPS accuracy < 2.5 m
  • Geofencing

On-time cost

GPS Locator GL320 CHF 198.45
Setup and activation, GPS Locator GL320 CHF 49.75

Monthly cost

Subscription GPS Locator GL320M CHF 19.85

Use abroad (additional, monthly costs)

Roaming ZoneA CHF 10.75
Roaming ZoneB CHF 16.15
Roaming ZoneC on request

Options

...
Sheath
...

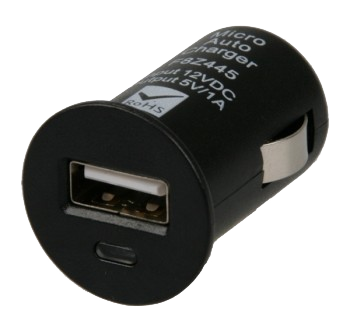

USB 5V-car charger
...
USB 5V-car charger, double
...
Loading cable USB 2.0 mini
All prices incl. 8.1 % VAT
Mobile Network/
Operating Band
LTE: Cat M1/Cat NB1
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25*/B28
LTE-TDD: B39 (for Cat.M1only)
GSM: GPRS8950/900/1800/1900 MHz
GPS Sensitivity
cold start -145 dBm, tracking: -162 dBm
TIFF (first Fix)
cold start: ~30 "
hot start: 1 "
LED Indicators
CEL ,GNSS, PWR
Weight
93 g
with Magnet-Mount-Set 160 g
Dimenstions
77.9 x 39.9 x 26.7 mm
Powersupply
LI-Polymer 2600 mAh, 3.7V rechargeable
Batterylife
Up to 320 hours with transmissions every 5 minutes
up to 16 hours with transmission in realtime
Operating Temperature
-20 ° bis +55 °C
GPS Accuracy
< 2.5 m
A GPS
online/offline Support
Transmission Protocol
TCP, UDP, SMS
Antenna
internal LTE/GNSS
Motion Sensor
3-axis
Approvals
CE, e1 & FCC Certificate
Origin
China
